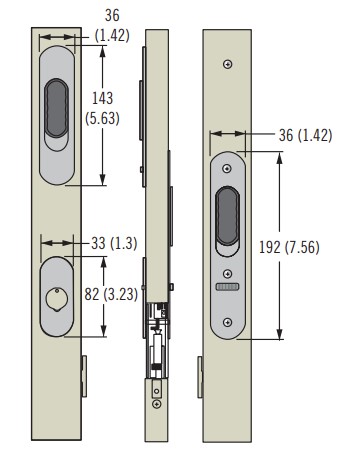

Måttritning

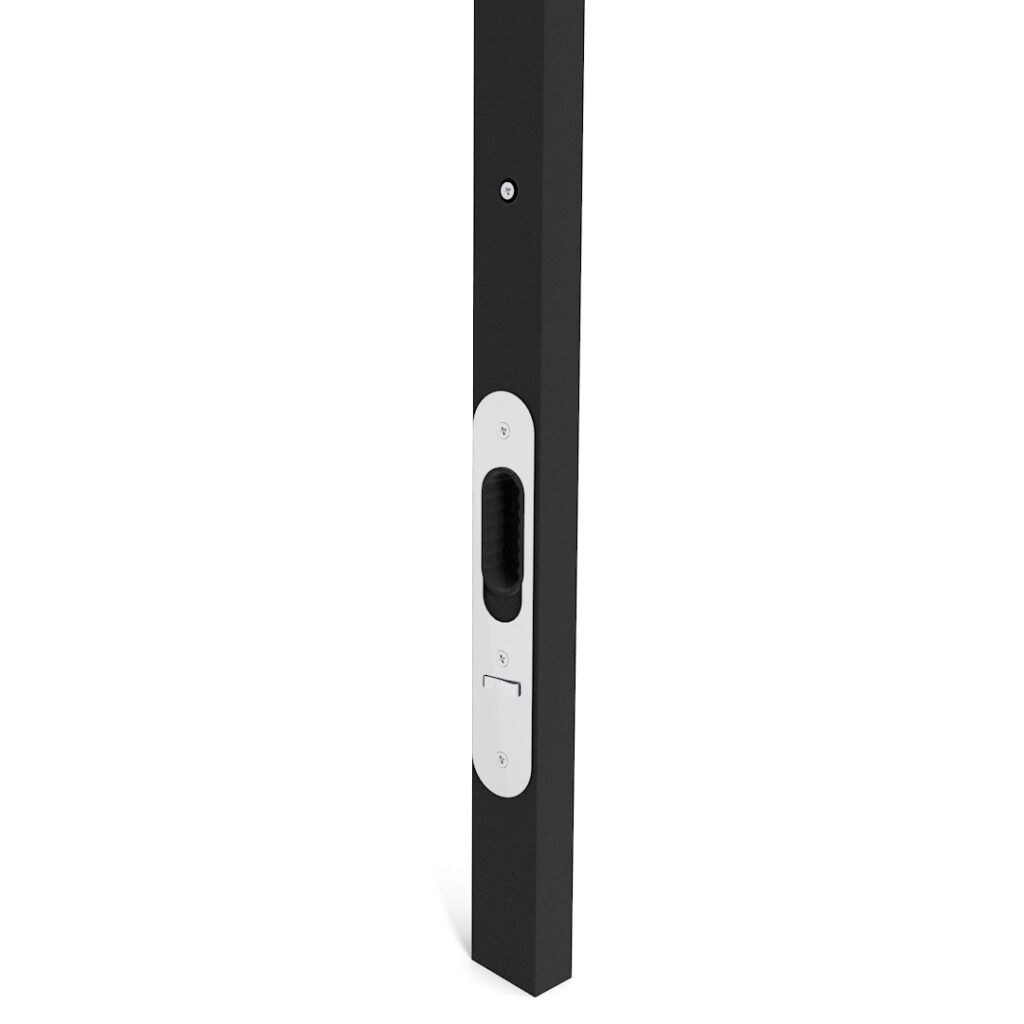

STAR TALON
- Star Talon sliding entry lock/sliding-door lock is designed for aluminum extrusions, wood or fiberglass doors between 2.5-38mm.

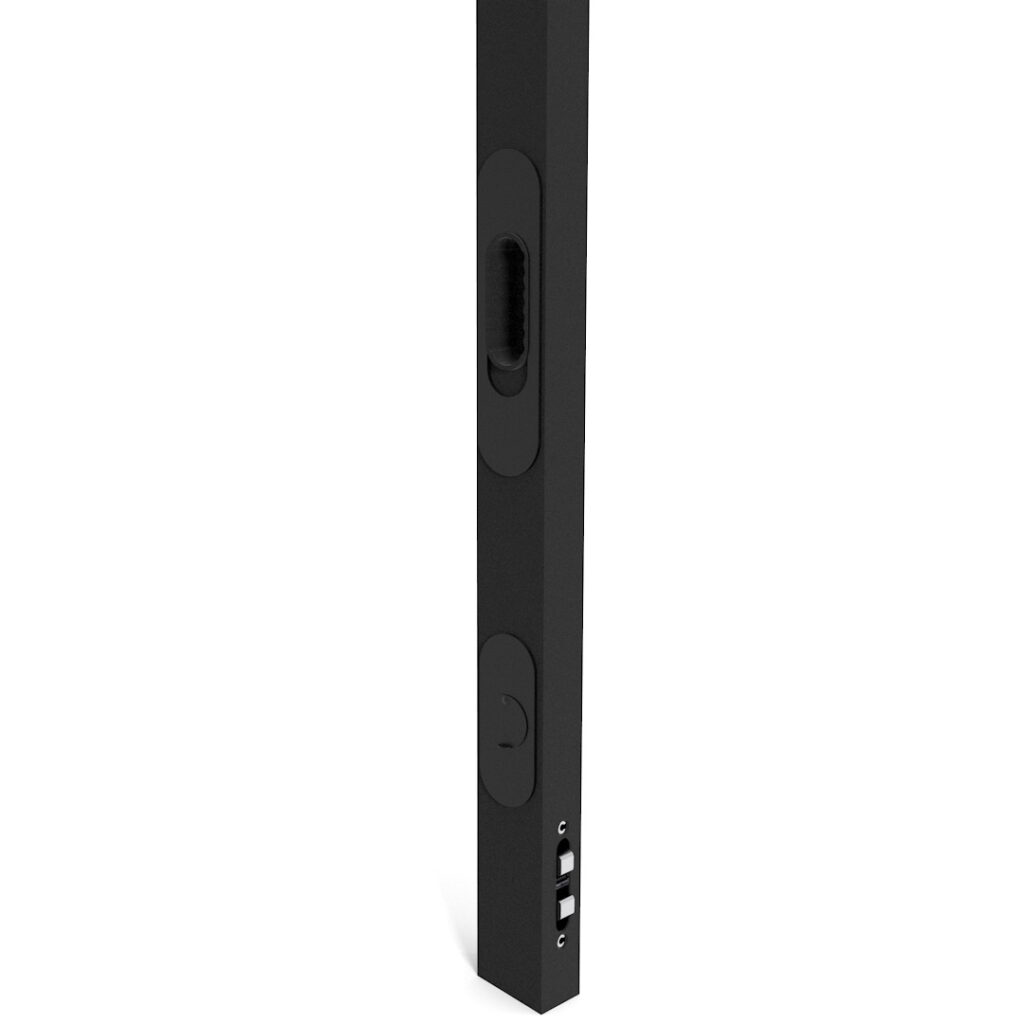

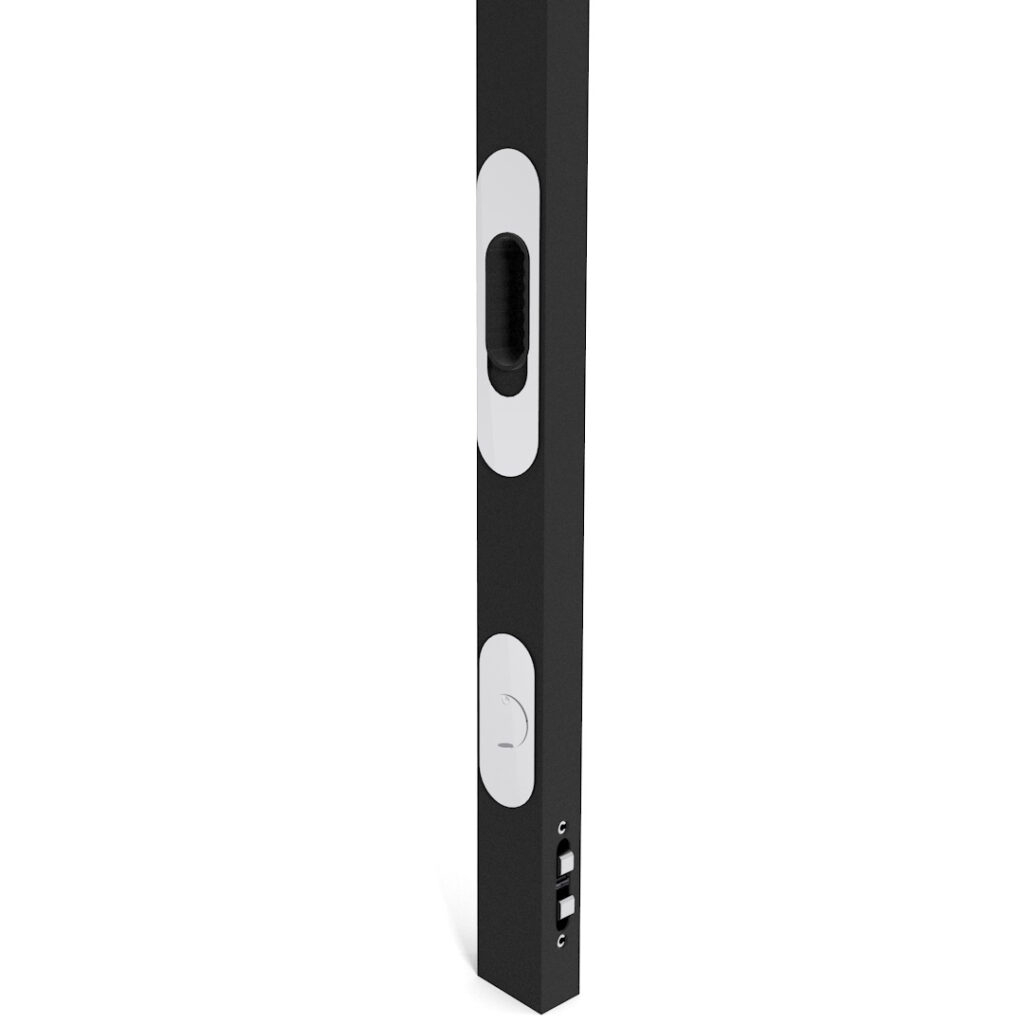

- Available in chrome or black.
- Higher safety than Talon Standard.
- Outside high security key lock, inside privacy knob.
- Non-protruding handle provides maximum door opening.
- Can also be used without a key locking for sliding doors in the cabin. For more information, please contact us.
Hitta ditt artikelnummer
Loading...
Artikelnummer
MM-01-13X-X0

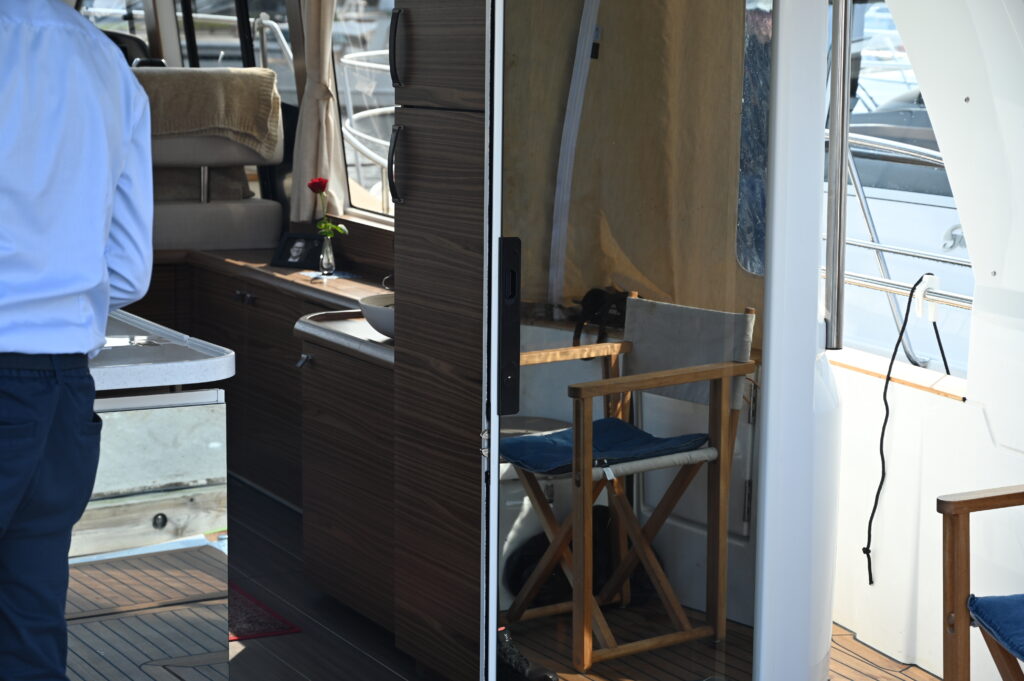

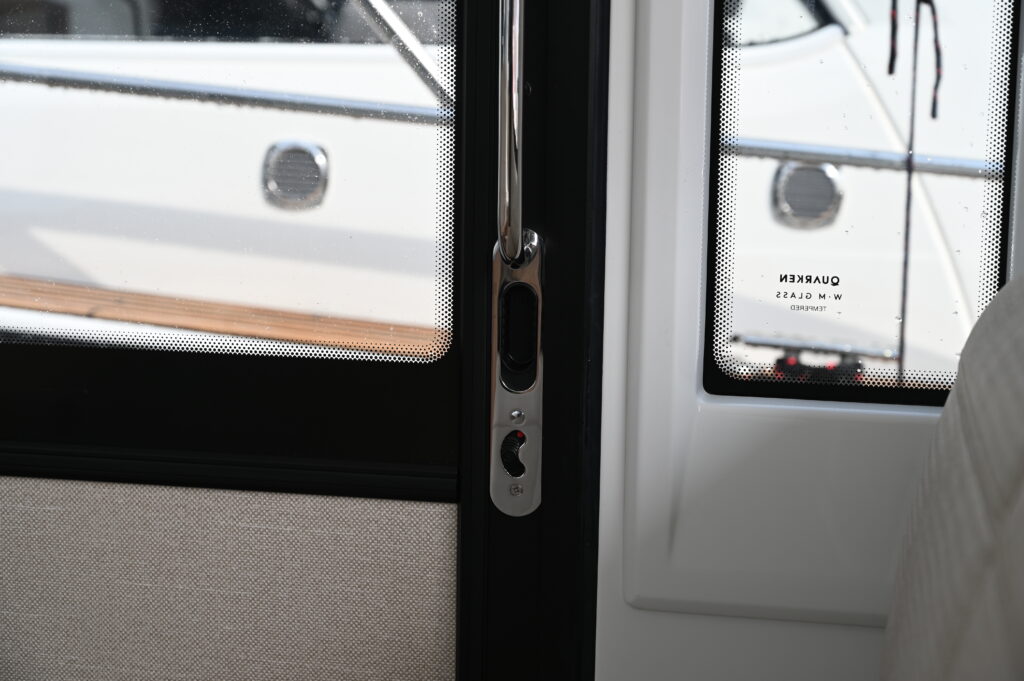

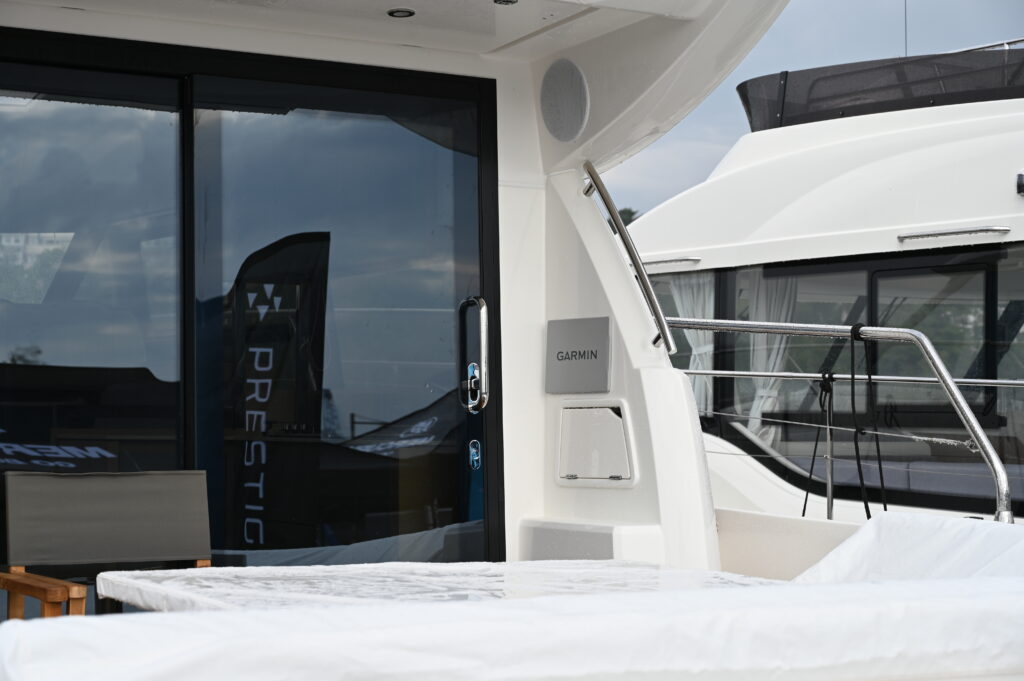

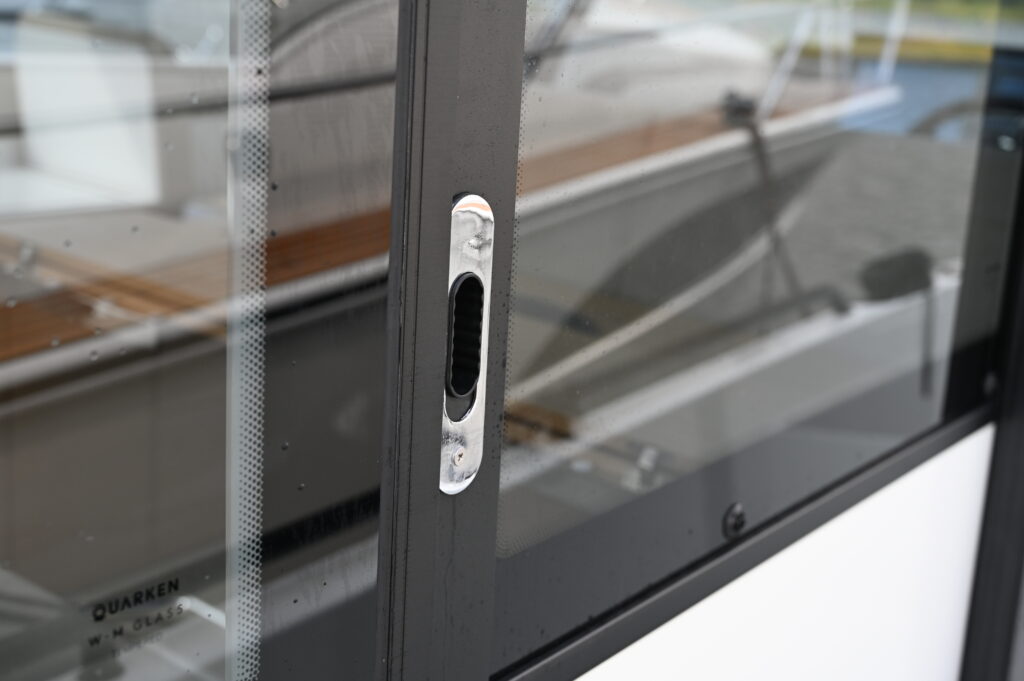

Applikationsbilder
Vanliga frågor
Yes, the mounting tool for Talon can be found under "Talon spares & accessories" in the spare part section.
The Talon fits different types of profiles, but we recommend minimum 40mm width and 25mm depth.
Yes, with the help of the High Seas handle you will get both an external handle and a connection to the internal handle that makes it possible to operate with only one hand.
The High Seas handle can be found under “Talon spares & accessories”.
We do sell some spare parts for the Talon standard and Star Talon, which can be found under “Talon spares & accessories”.
If the component you are looking for is not in the spare parts section, please contact info@onmar.se.

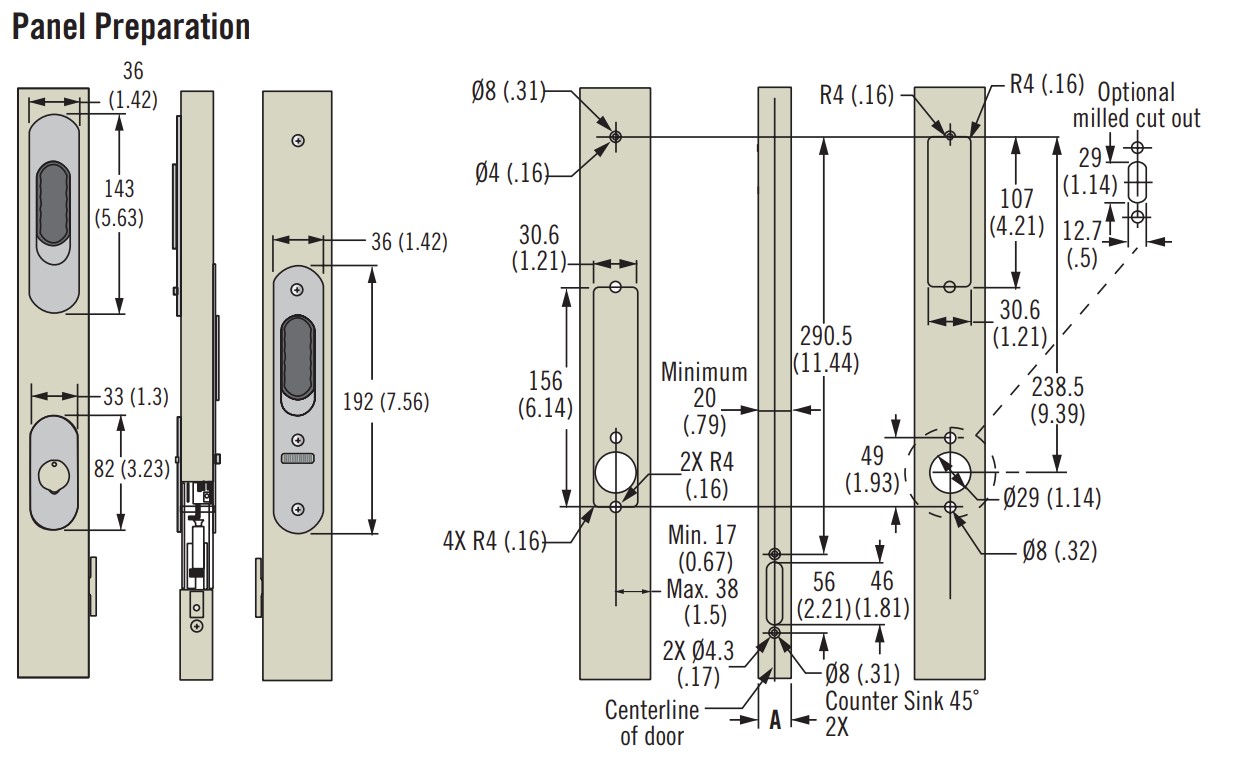

This information can be found under “Technical info” for illustration.
Talon standard: On the inside handle the key code number is engraved in the plastic. Key code starts with number 8 or 9.
Talon Star: On the inside handle the key code number is engraved in the plastic.
The key code starts with a letter S/N/E/W followed by a two digit number, followed by a three digit number.
The difference between Talon standard and Talon Star is the lock cylinder.
The Talon Star offers a high security lock cylinder while the Talon standard uses a standard lock cylinder.
Other than that, there is no other difference between the two of them.
