Measurements

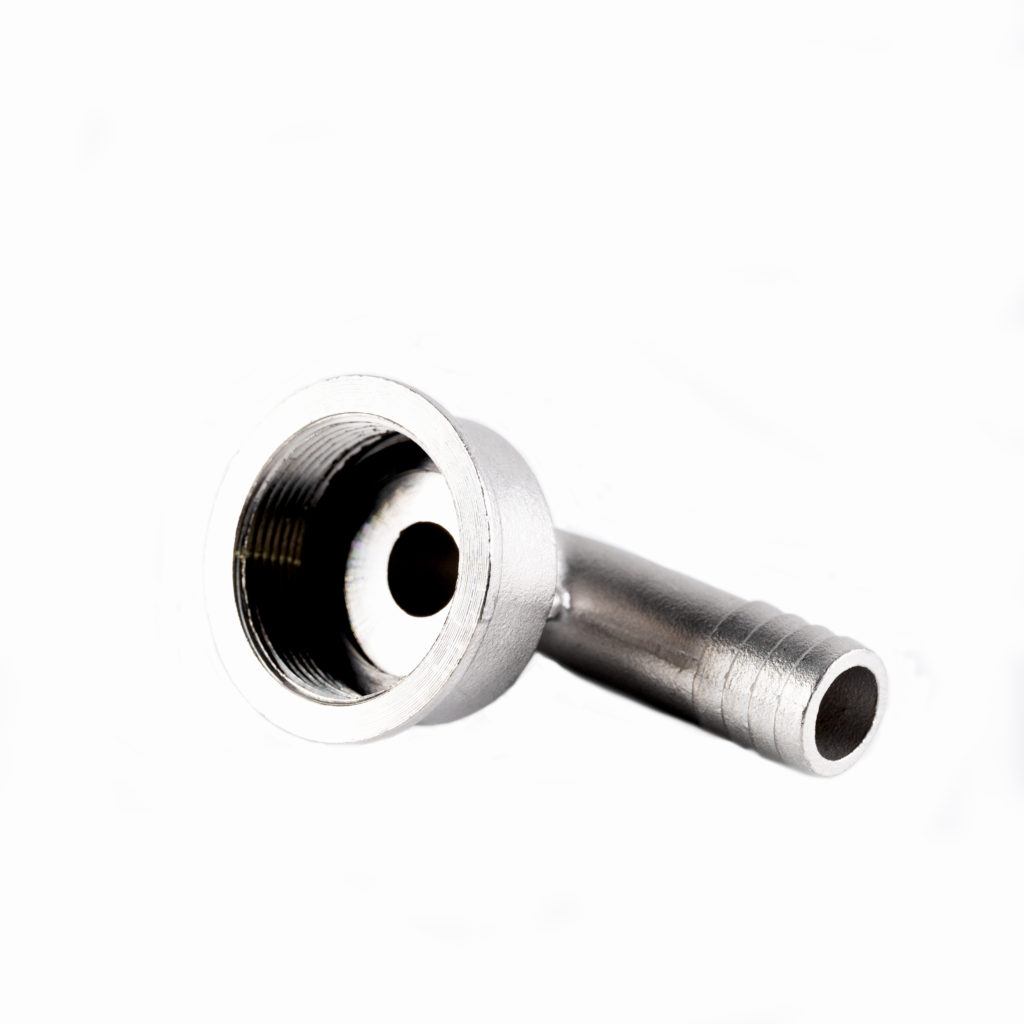

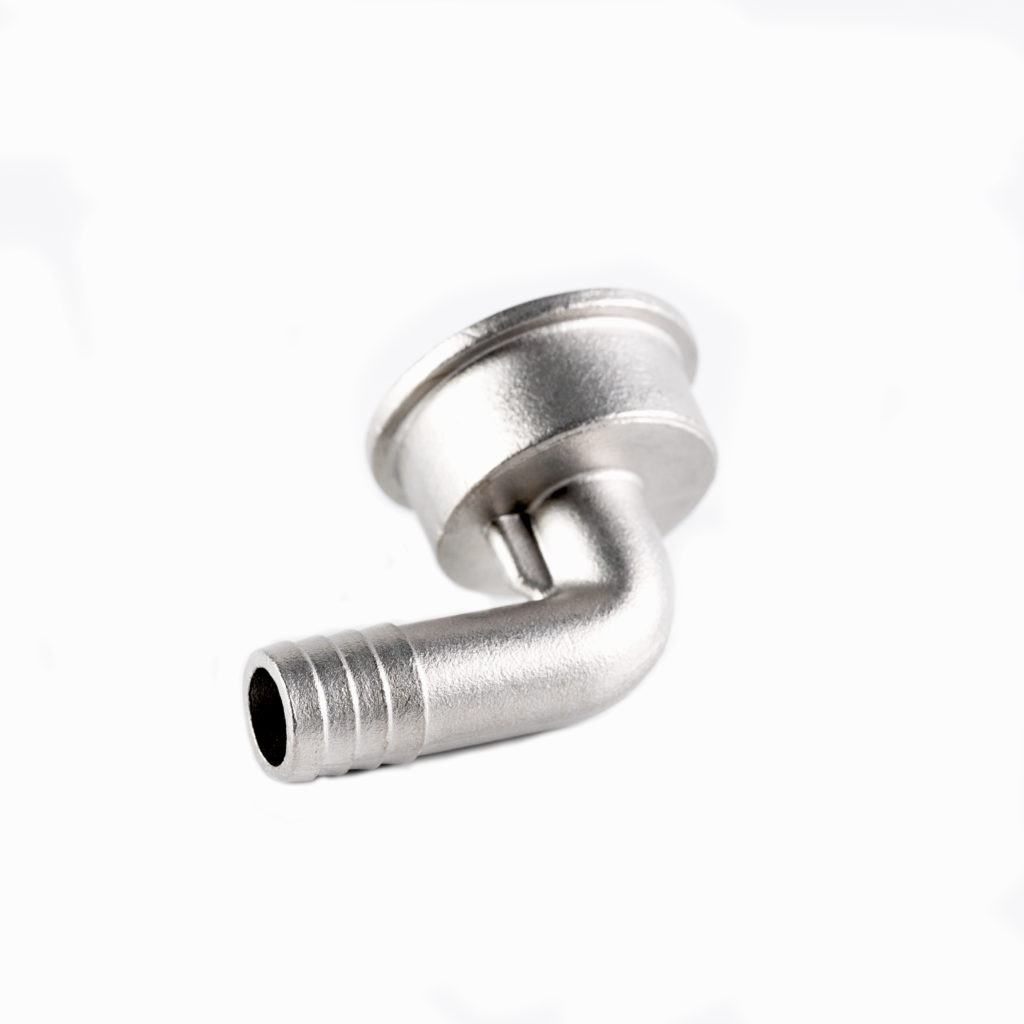

BARB ADAPTER 90°
- 90° barb adapter in 316 stainless steel.
- Fits stainless steel all-thread thru hull fittings and drain grates.

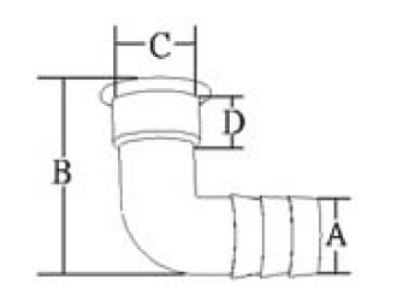

- Available in four different sizes, see below drawing with measurements.
| Size (mm) | SKU | A | B | C | D |
| Size 1 | M7-11-9005224 | 16 | 45 | 31 | 14 |
| Size 2 | M7-11-9005225 | 19 | 48 | 31 | 14 |
| Size 3 | M7-11-9005226 | 25 | 55 | 31 | 14 |
| Size 4 | M7-11-9005228 | 19 | 75 | 45 | 17 |
Find your part number
Loading...
Part number
M7-11-9005224X
