Measurements
DECK FILL
- Vented deck fill. All stainless steel construction.
- The easy grip cap is smaller and easy to adjust orientation after final installation.
- Comes with our spring loaded stainless steel cap security cable.
- Mounted from above with hidden screws under the fuel cap.

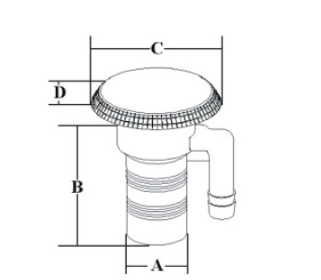

See Measurement below.
| Measurement (mm) | A | B | C | D |
| Waste 38 | 38 | 98 | 79.35 | 12.5 |
| Waste 50 | 50 | 120 | 79.5 | 12.5 |
| Diesel 50 | 50 | 114 | 79.5 | 12.5 |
| Fuel 50 | 50 | 114 | 79.5 | 12.5 |
| Petrol 38 | 38 | 98 | 79.5 | 12.5 |
| Diesel 38 | 38 | 98 | 79.5 | 12.5 |
| Fuel 38 | 38 | 98 | 79.5 | 12.5 |
Find your part number
Loading...
Part number
M7-23-920670X
