M1 COMPRESSION LATCH 2" PVD

Product page

Panel preparation

You must be logged in to download file.

Log in

• Images
• Technical info
• CAD file

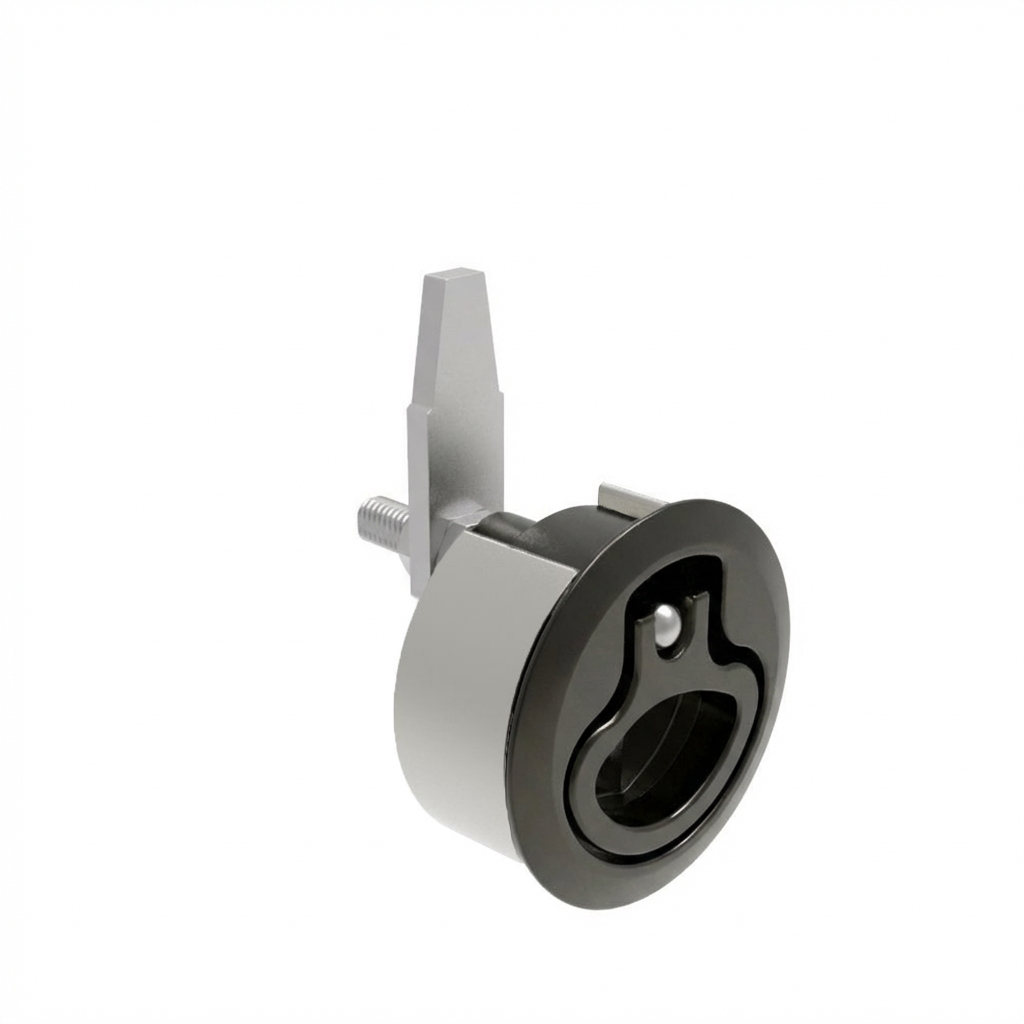

• The M1 compression latches offers a clean, flush design with proven quality.  Simply lift the handle to release compression; and turn to have the pawl clear the frame.
• 50,8mm (2”) latch cut out, also available in 63,5mm (2,5”)
• Cast 316 stainless steel compression latch, PVD treated for a glossy black finish
• Waterproof: NEMA 4 / IP-66 sealing is achieved by using supplied flange gasket
• Consistent pre-set compression of 4mm
• Available both with or without key locking (key locking available with std key or MIM key)
• 6 pawls offer great flexibility for custom fit a grip range from 21mm to 76mm
• Fit panels between 2-29mm
• Short cam Maximum static load: 460 N (103 lbf)
• Long cam Maximum static load: 350 N (78 lbf)
• Installs conveniently in a single round hole
• Note that this part is in a black PVD finish. All selected models (excl. components) will be in black, even thought the picture might suggest otherwise.
