Omni swing
OMNI FLAT

Product page

Installation

Panel preparation

You must be logged in to download file.

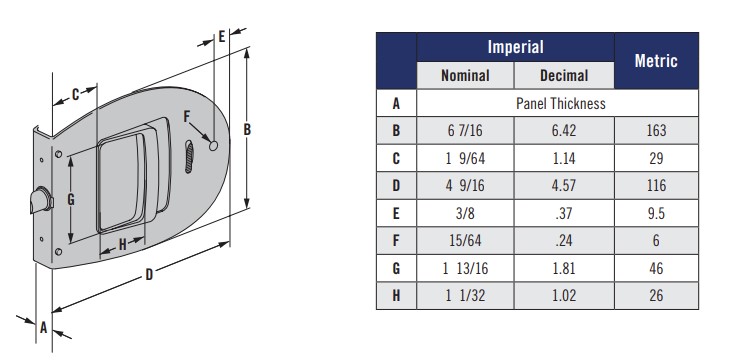

Measurements

OMNI FLAT

Product page

Installation

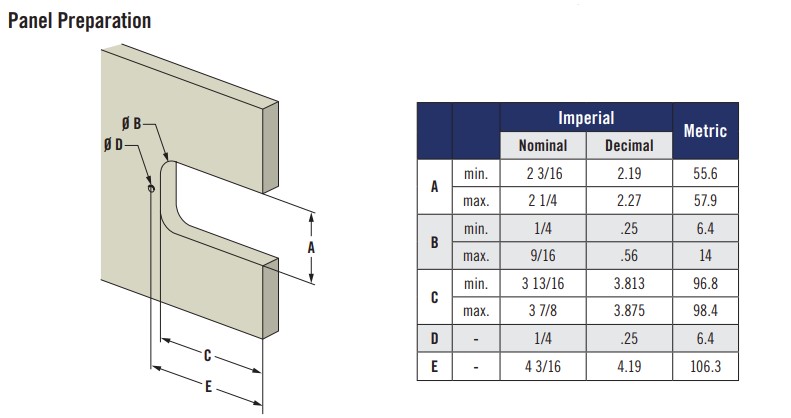

Panel preparation

You must be logged in to download file.

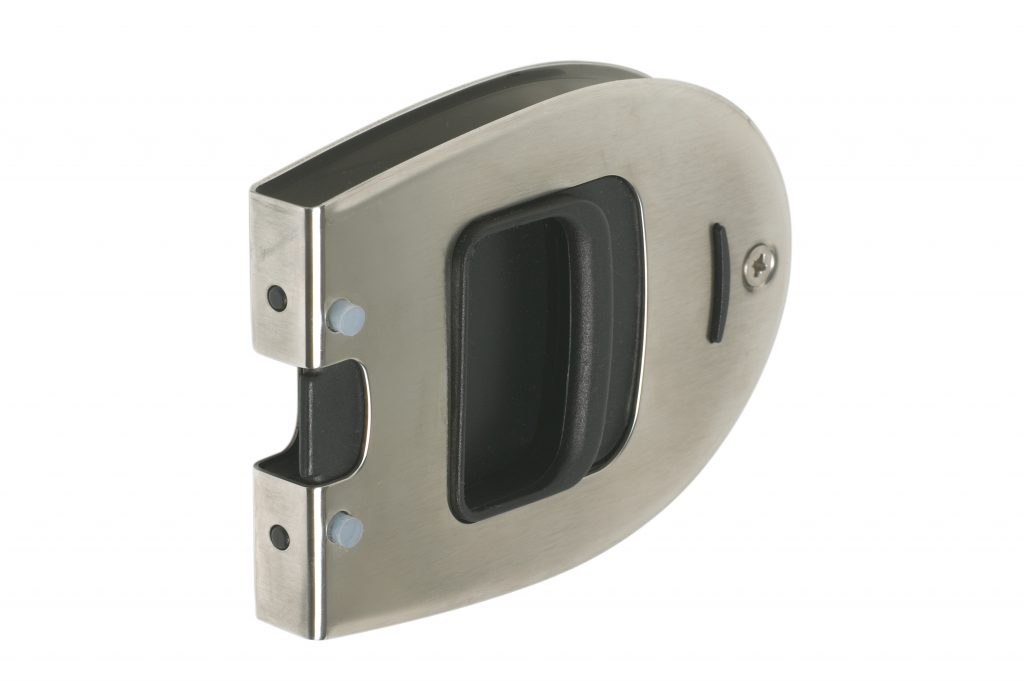

A flush mounted slam latch with flat spring bolt available with and without locking.
Made for both interior and exterior applications.
Patented solution that enables maximum doorway through externally mounted striker.
One striker is included.
Fits door thicknesses between 12,5-19 mm

Find your part number

12.5 16 19

No Yes

The combination you have chosen does not exist. Please choose another combination

Part number

MR-02-120-2X

Select part number to view

fr. 204.24 USD

Excl. VAT

Select variant

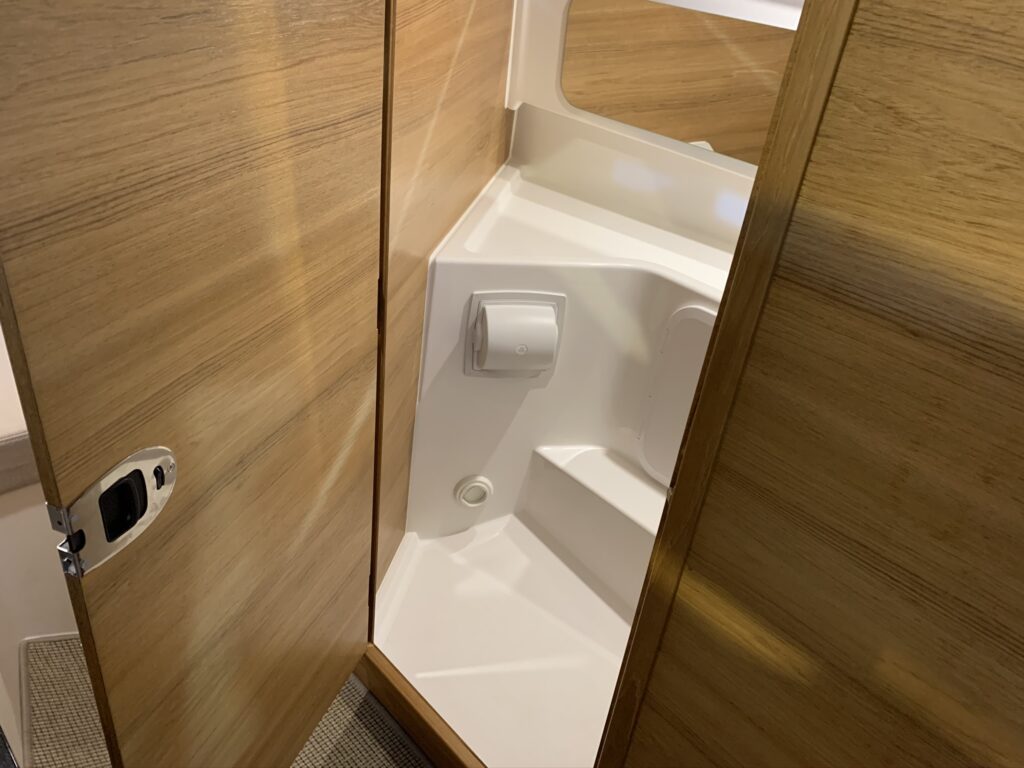

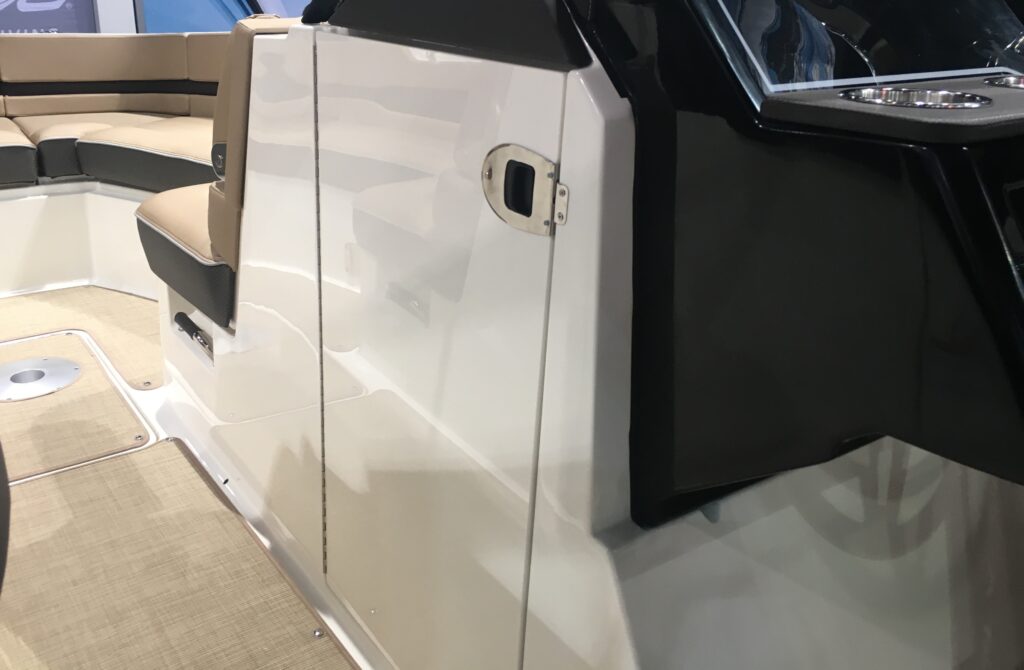

Application photos
