V LOCKER TURN LATCH

Product page

Installation

You must be logged in to download file.

Log in

• Images
• Technical info
• CAD file

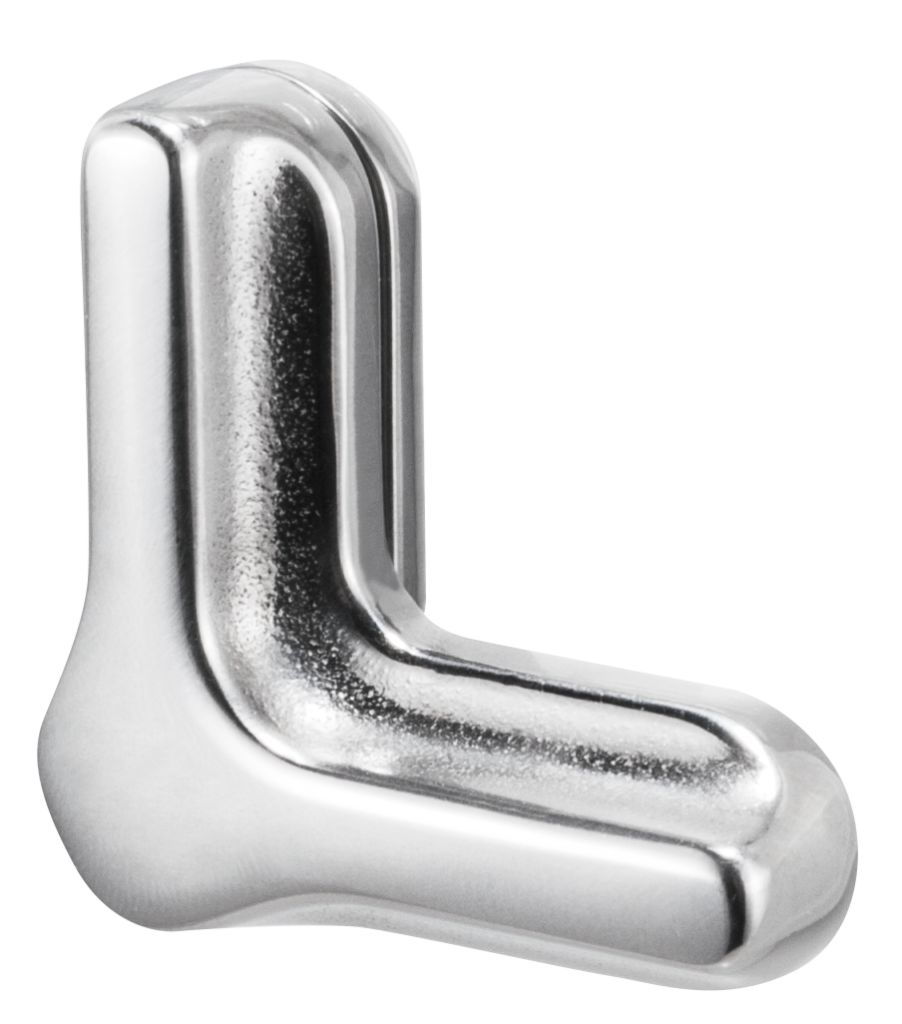

• V-shaped turn latch in 316 stainless steel.

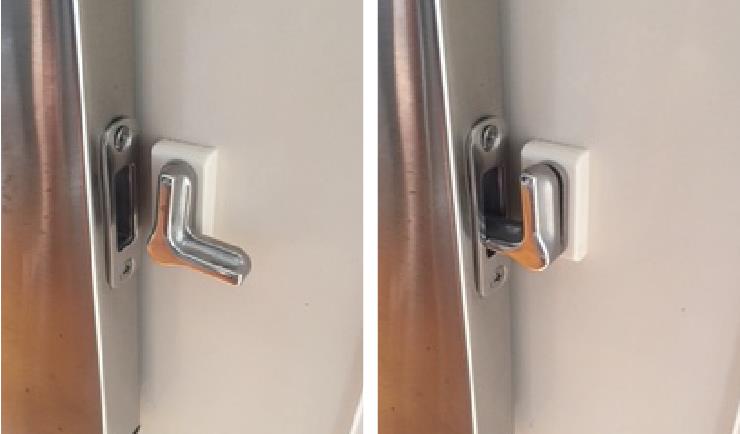

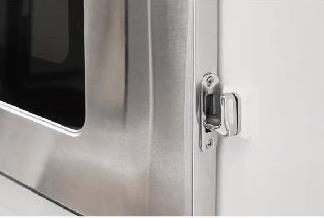

• Function as a drawer or cabinet stop to ensure secure closure, even underway.

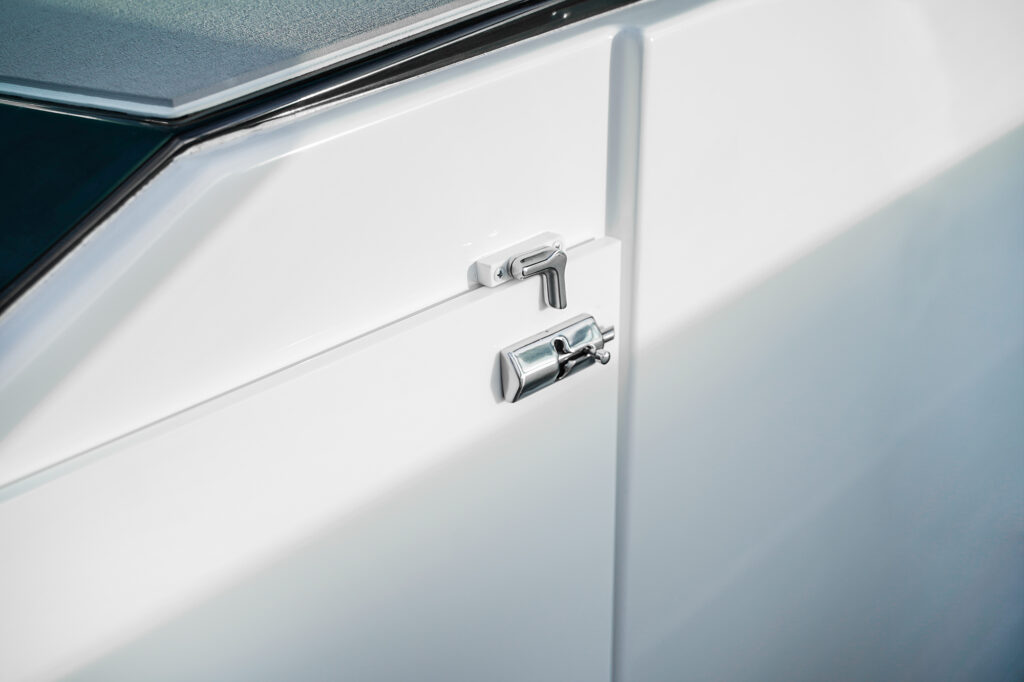

• Ideal for use on small cabinets and discreet storage compartments
• Easy installation with hidden fastener design for clean appearance
• Detent allows fixed positioning with 90° rotation
• The plastic stopper that is included is designed to compensate the gap between the locker and door surface, when latched

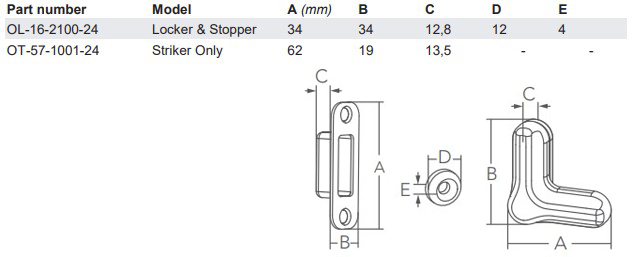

• Stainless Steel striker OT-57-1001-24 is sold separately
• Screw size M4 or #8 for V Locker Turn Latch and for the Striker
• Screw size M3 or #6 for stopper
